Dawson Moor Line+ Timber Flush Fitting Modular Single Swing Door Kit

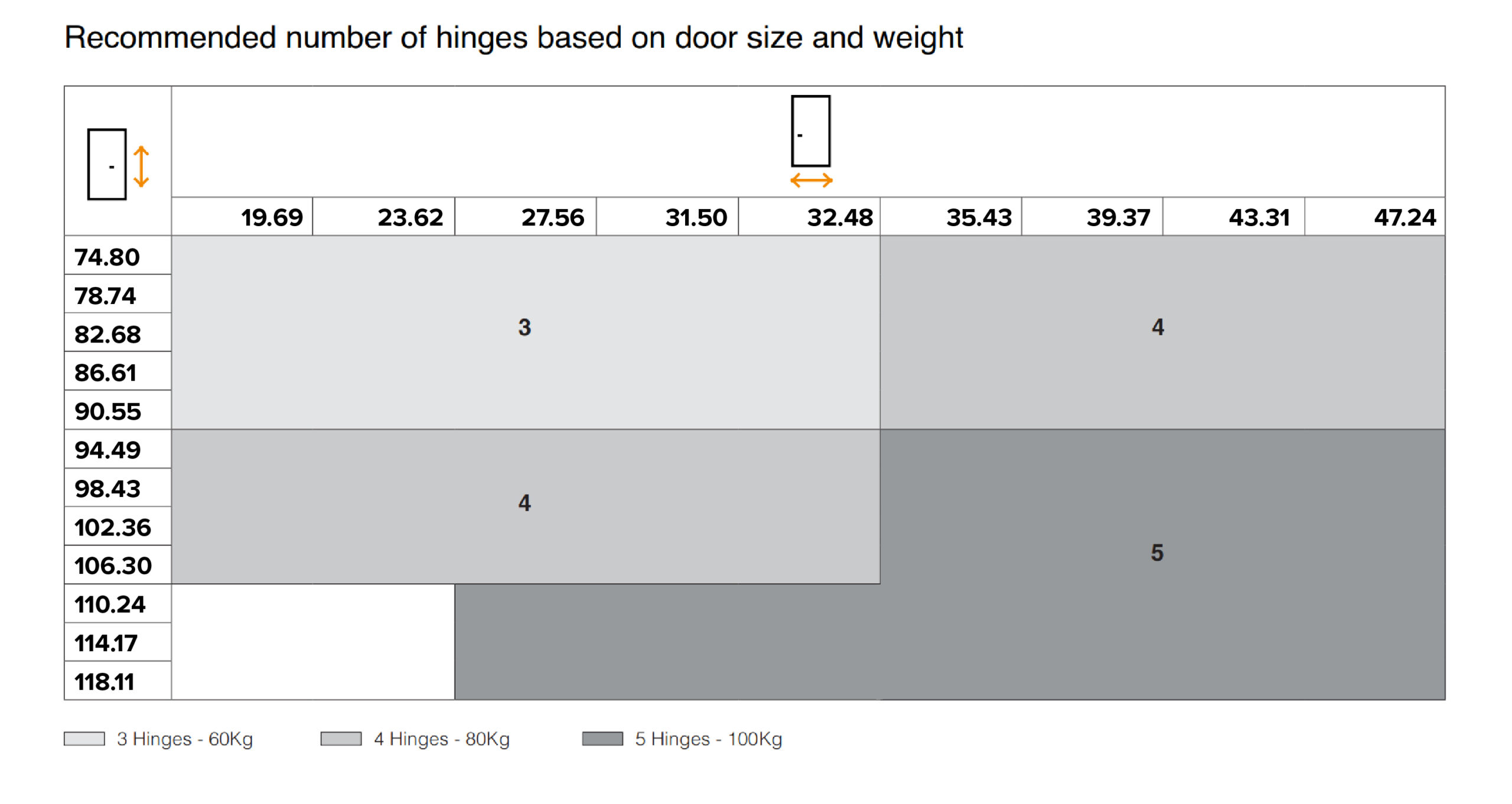

Modular flush-to-wall hinged door frame for doors up to 176lbs.

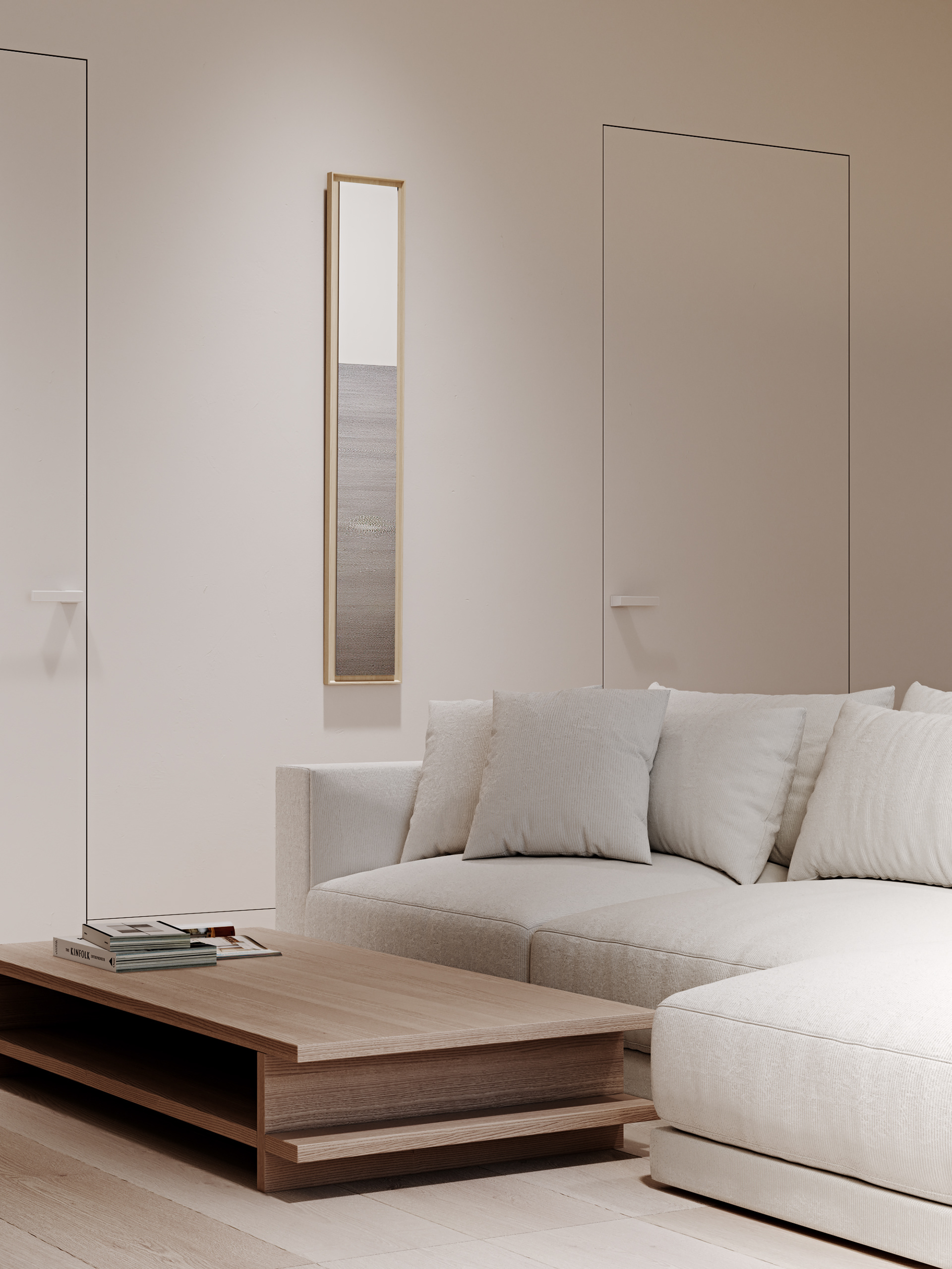

With Line+ Timber invisible door frames reach a new level of versatility. Its adjustable frame—both in height and width—allows the hinges and closer catch to be positioned freely, enabling installation in any opening direction (push, pull, left and right).

Features

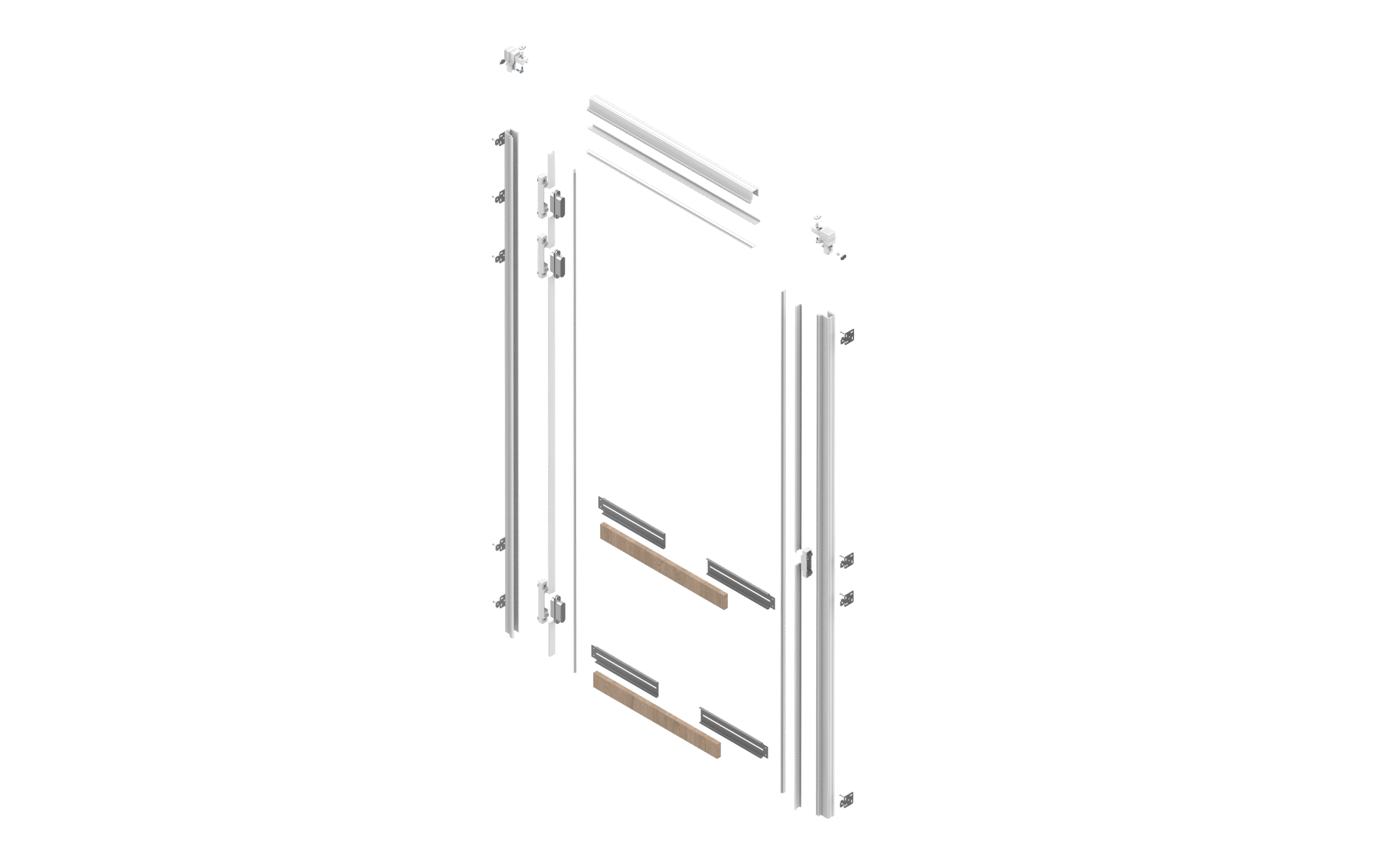

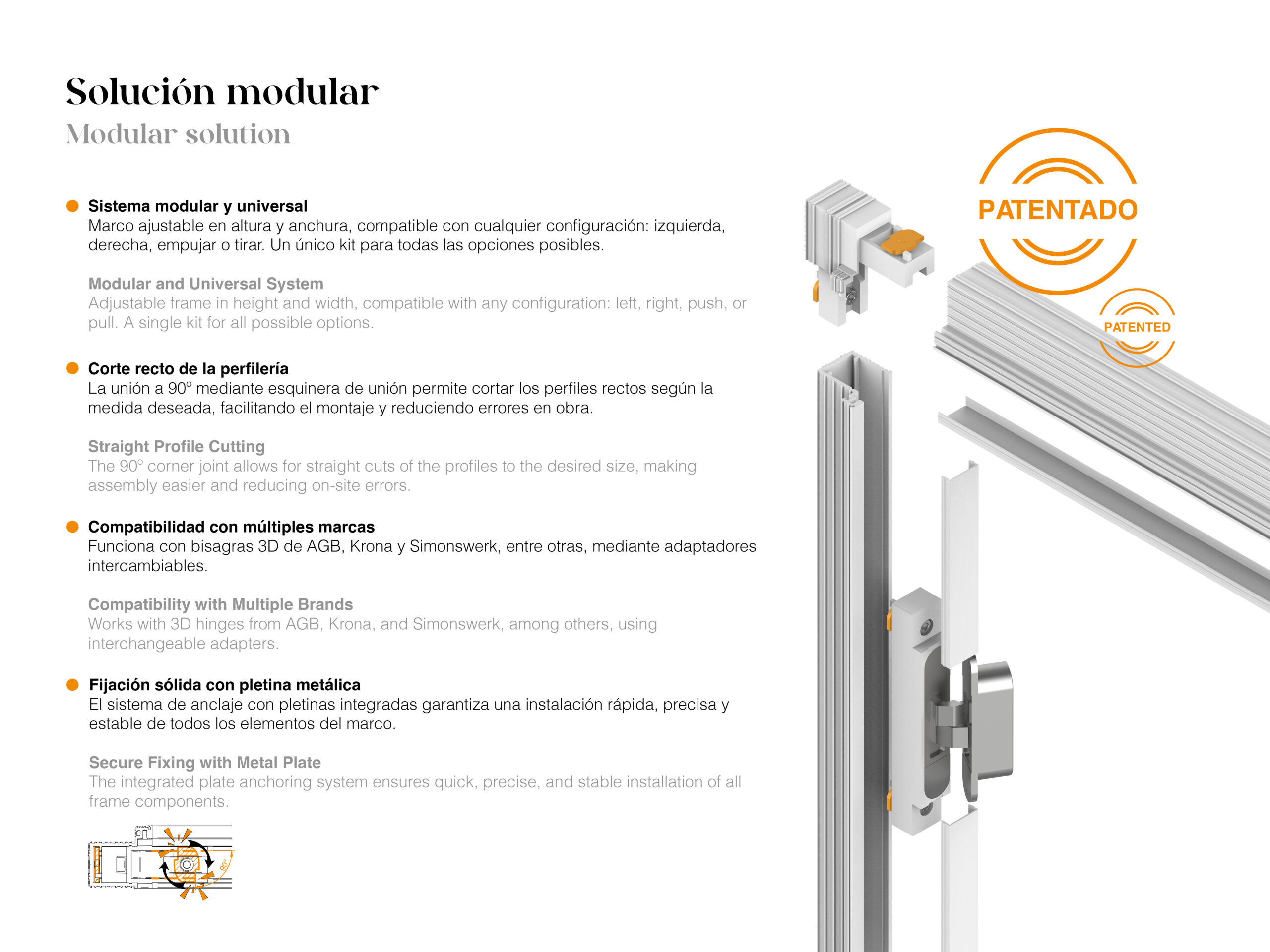

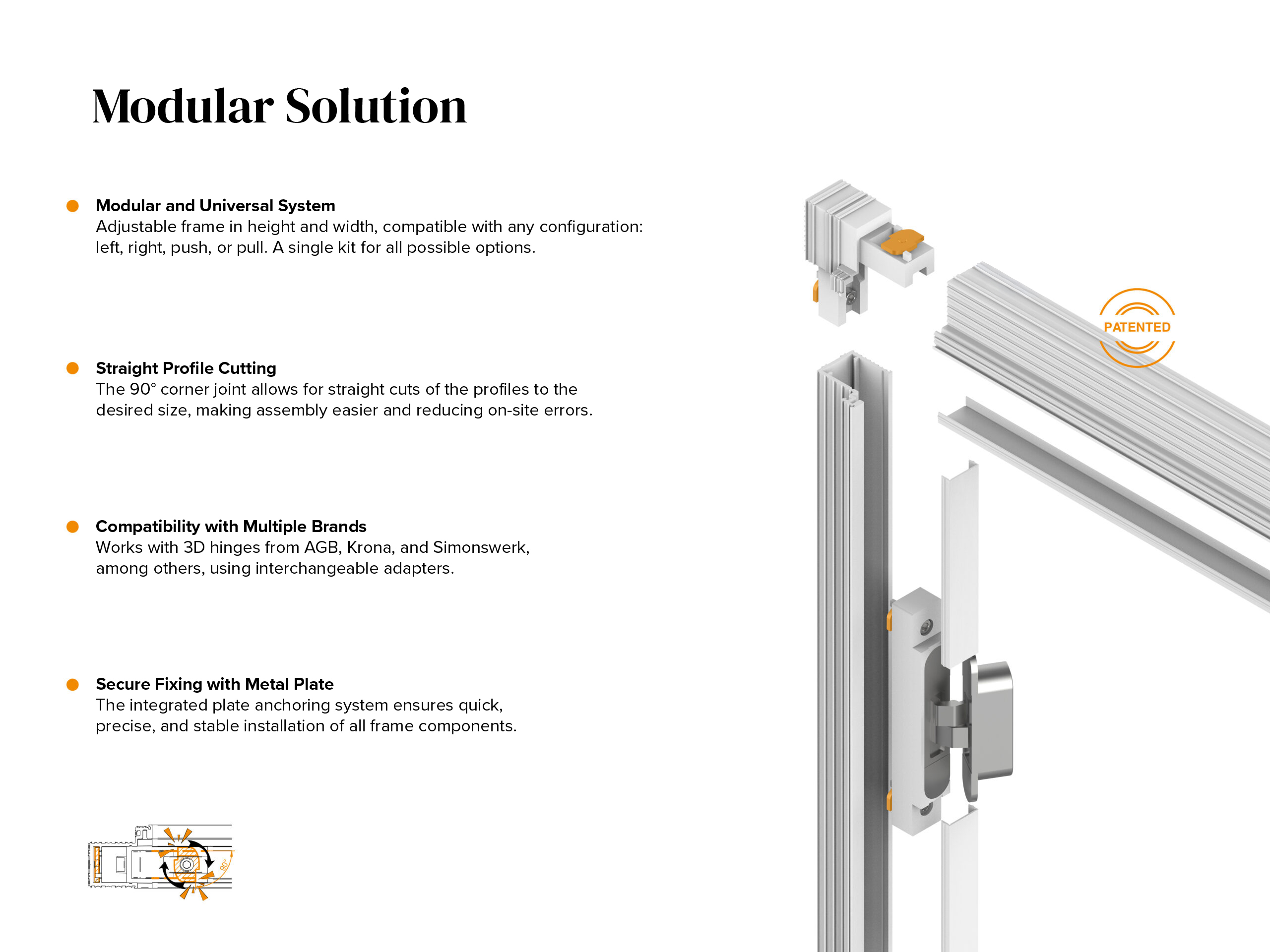

1. Modular and Universal System: Adjustable frame in height and width, compatible with any configuration: left, right, push, or pull. A single kit for all possible options.

2. Straight Profile Cutting: The 90º corner joint allows for straight cuts of the profiles to the desired size, making assembly easier and reducing on-site errors.

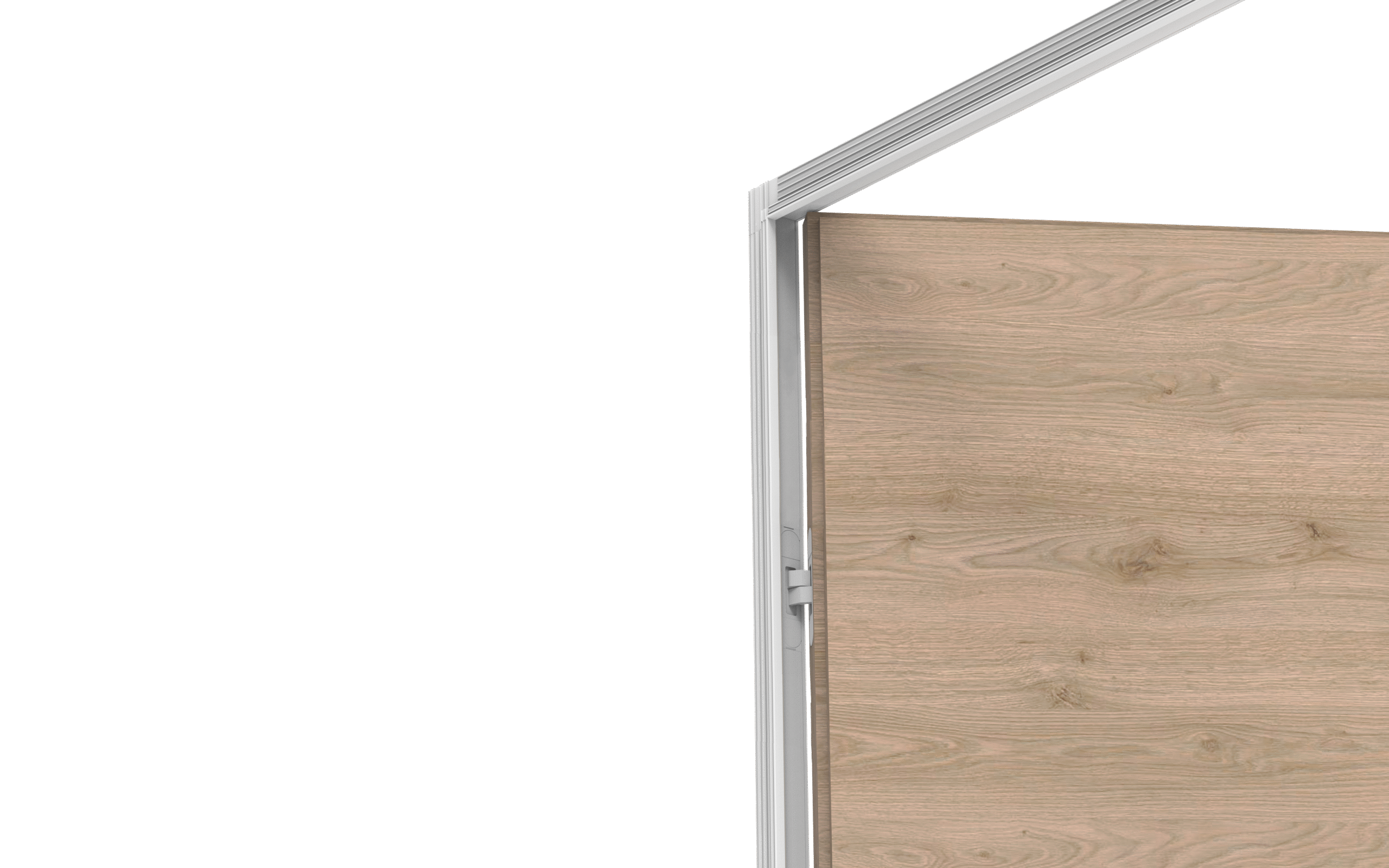

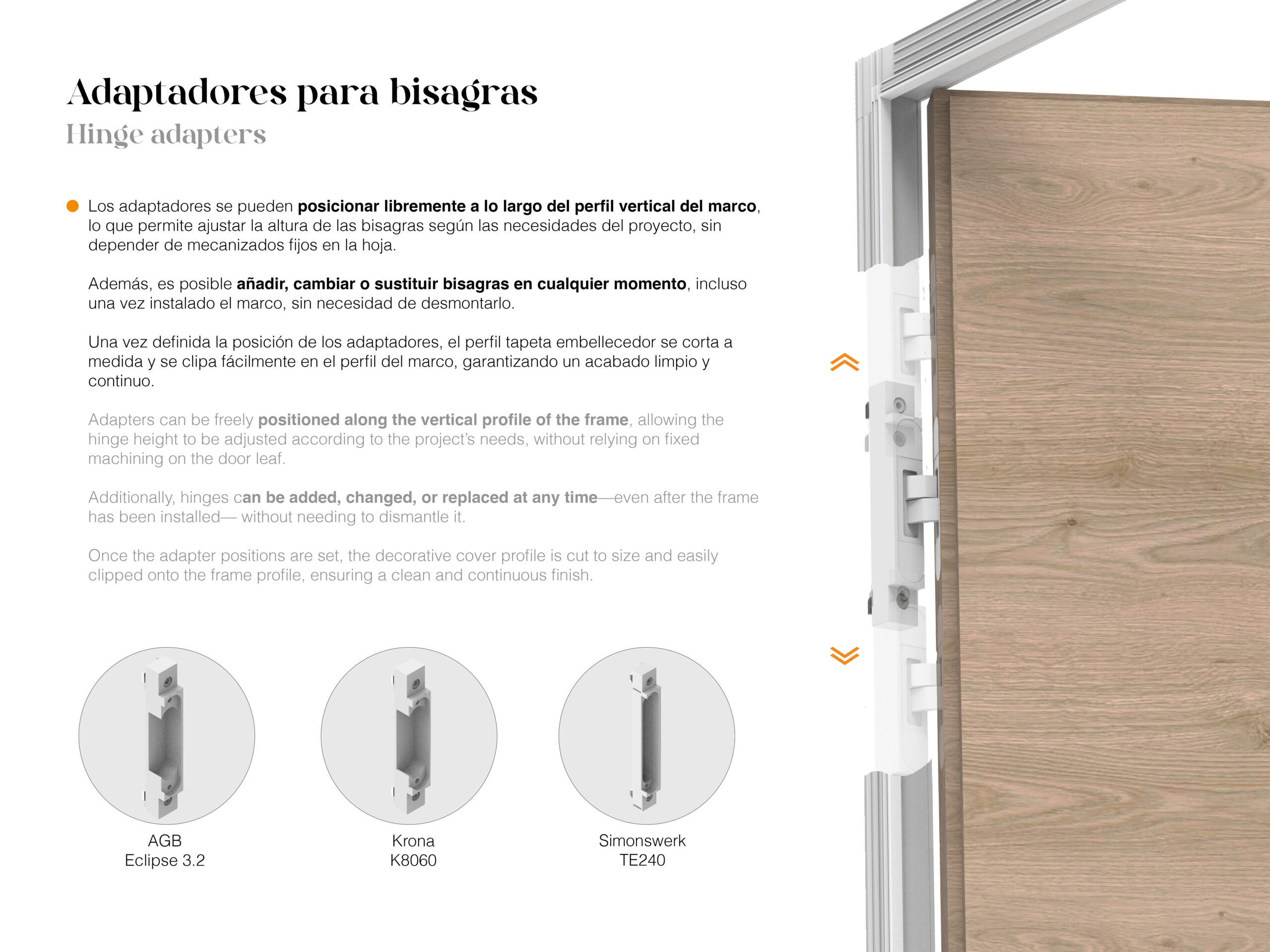

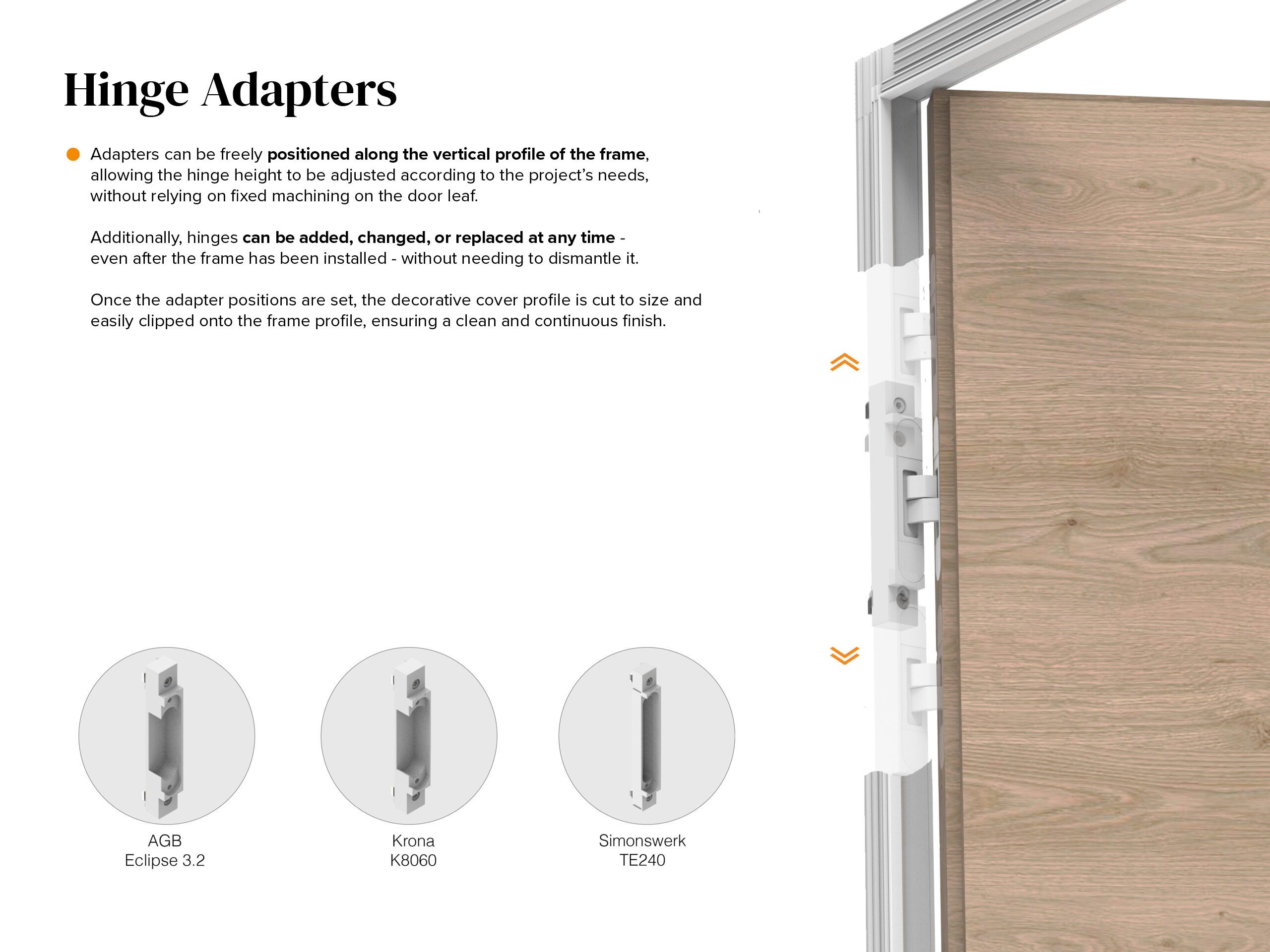

3. Compatibility with Multiple Brands: Works with 3D hinges from AGB, Krona, and Simonswerk, among others, using interchangeable adapters.

4. Secure Fixing with Metal Plate: The integrated plate anchoring system ensures quick, precise, and stable installation of all frame components.

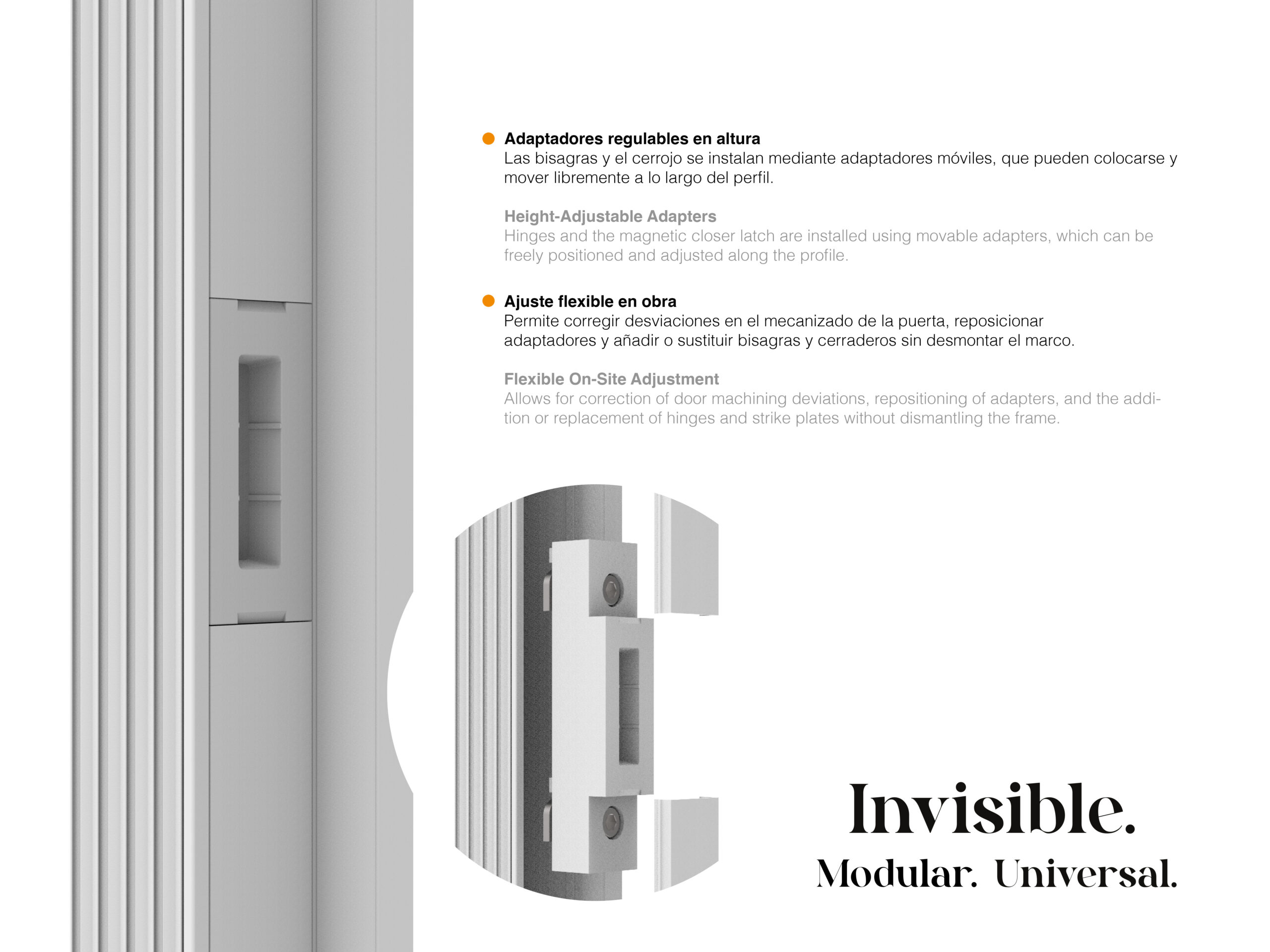

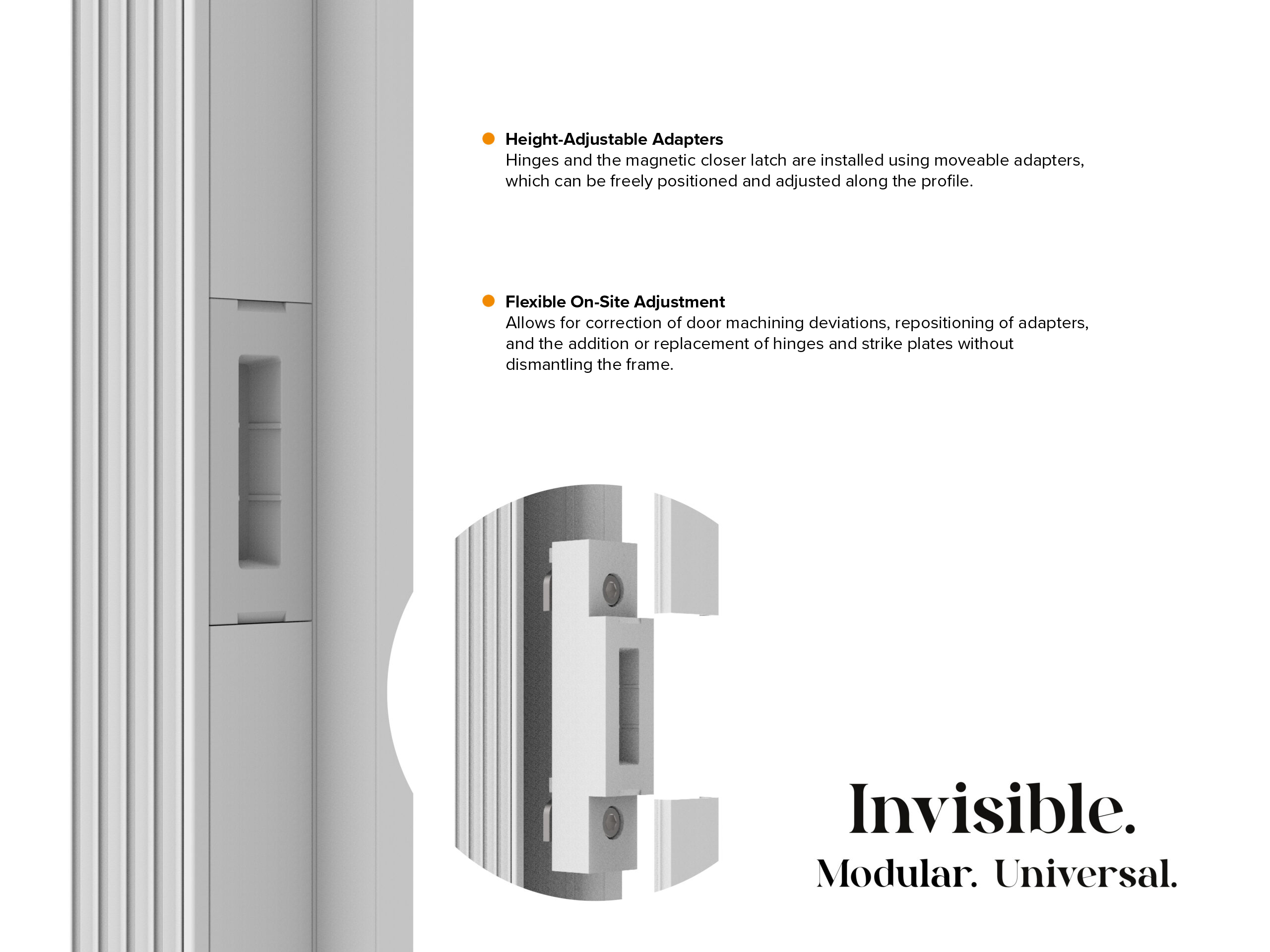

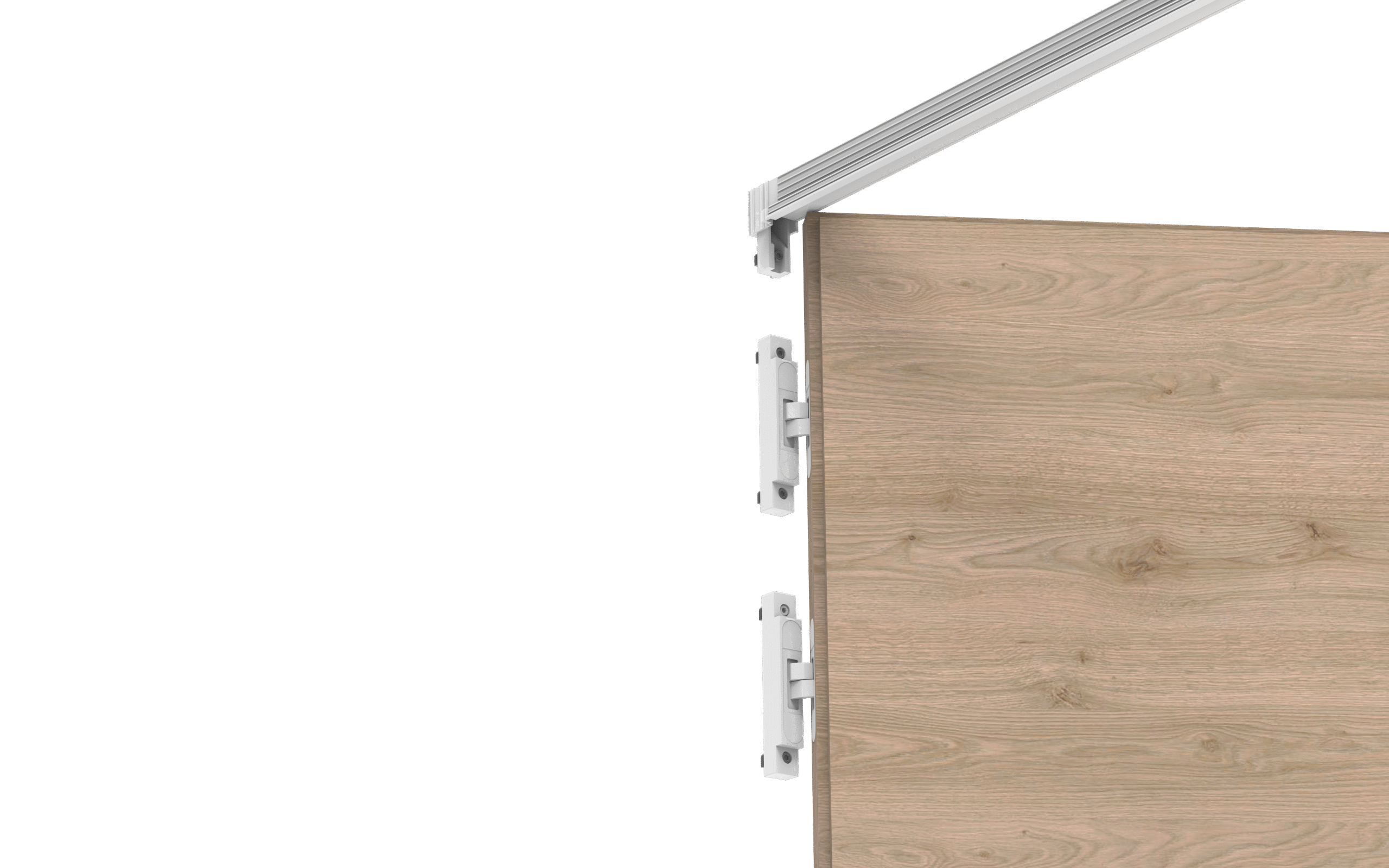

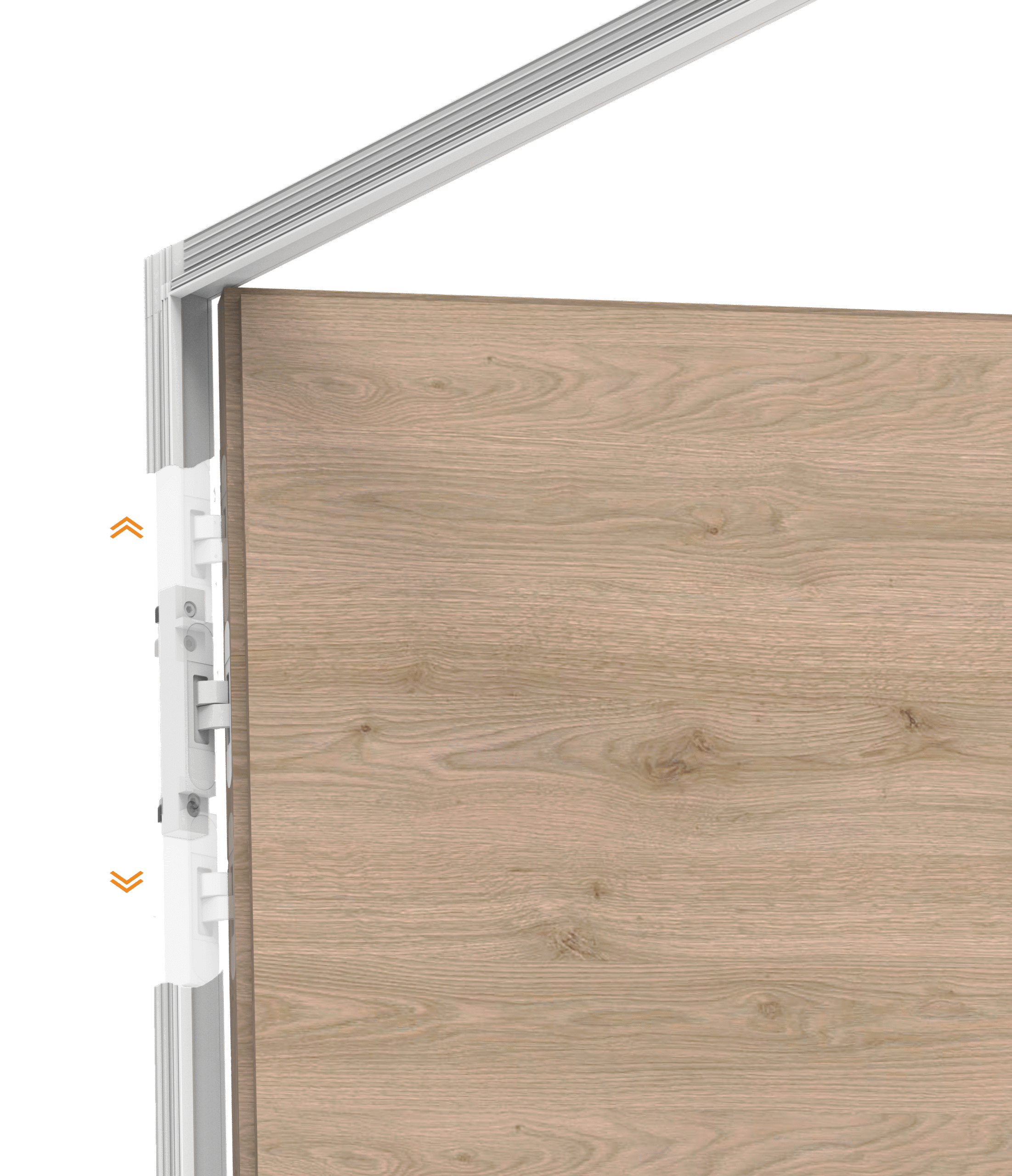

5. Height-Adjustable Adapters: Hinges and the magnetic closer latch are installed using movable adapters, which can be freely positioned and adjusted along the profile.

6. Flexible On-Site Adjustment: Allows for correction of door machining deviations, repositioning of adapters, and the addition or replacement of hinges and strike plates without dismantling the frame.

7. Premium aesthetics: Aluminum frame with textured white primer to ensure paint adhesion.

8. Frame design optimized to ensure long-term stability and prevent the appearance of microcracks over time.

9. Integrated corner connectors for a robust, movementfree frame.

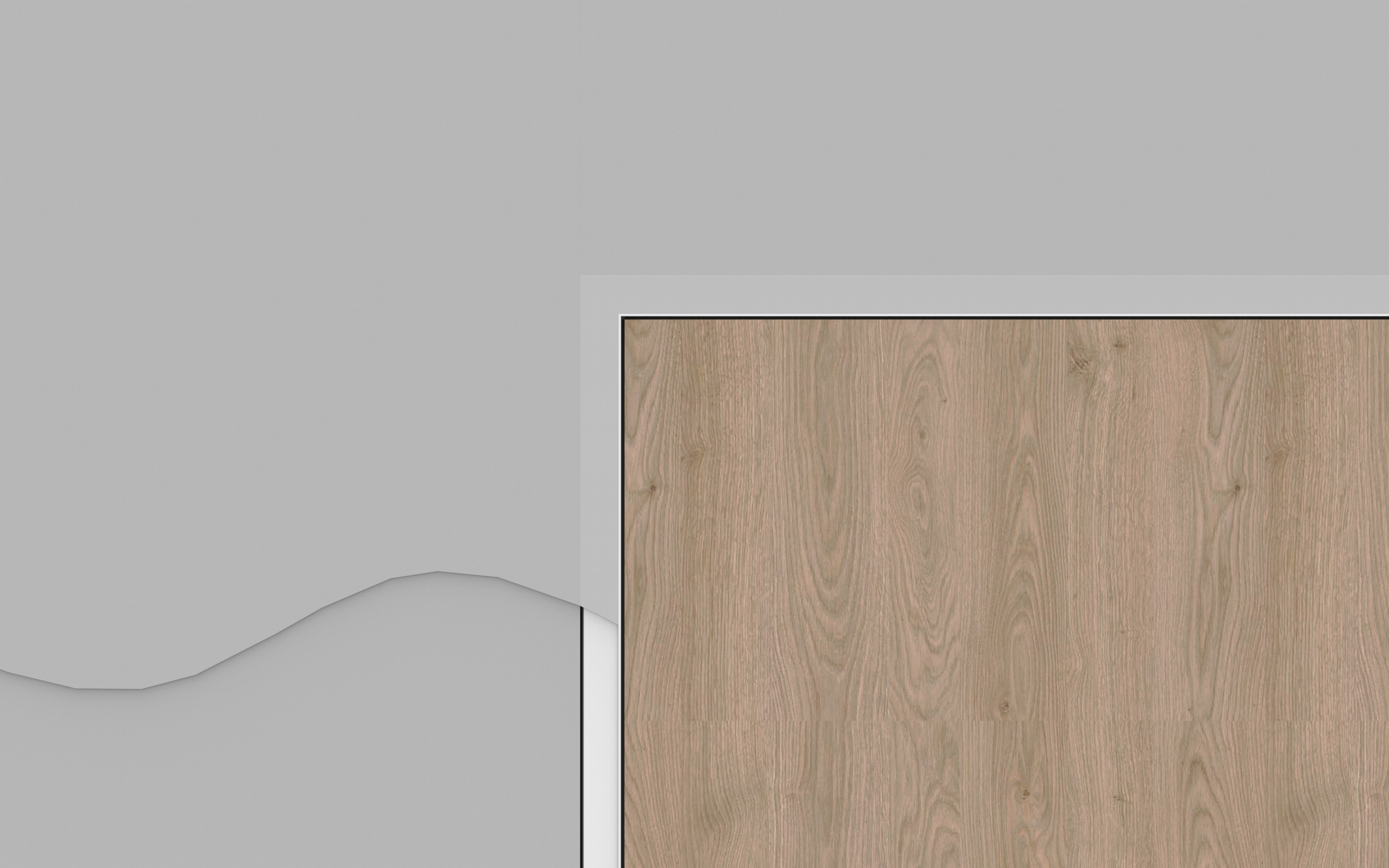

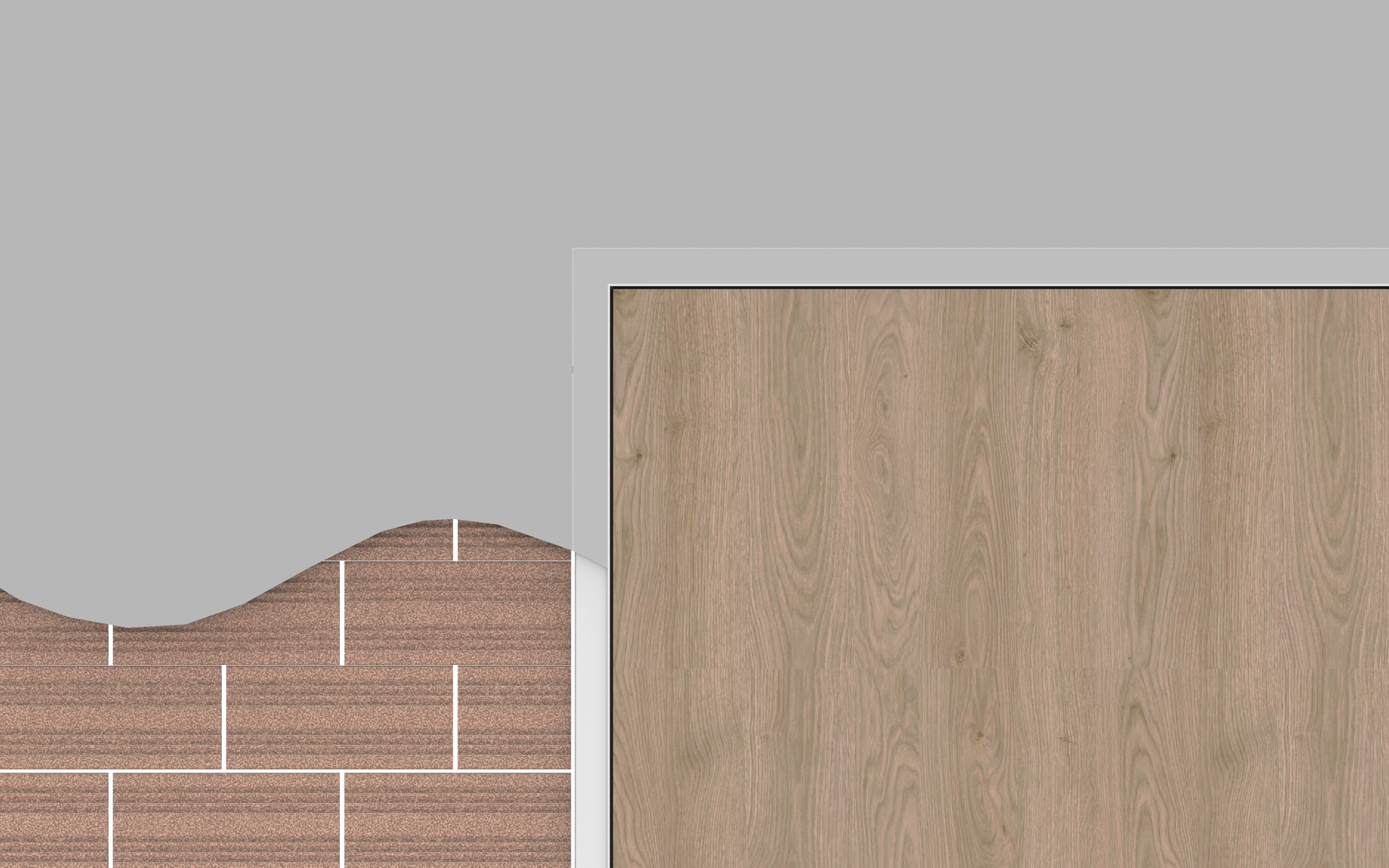

10. Secure and easy installation using anchor brackets or metal plates, suitable for drywall and masonry.

Please note – these kits do not come with a door slab. Customers will need to supply and prepare the door slab.
