From: $455.00

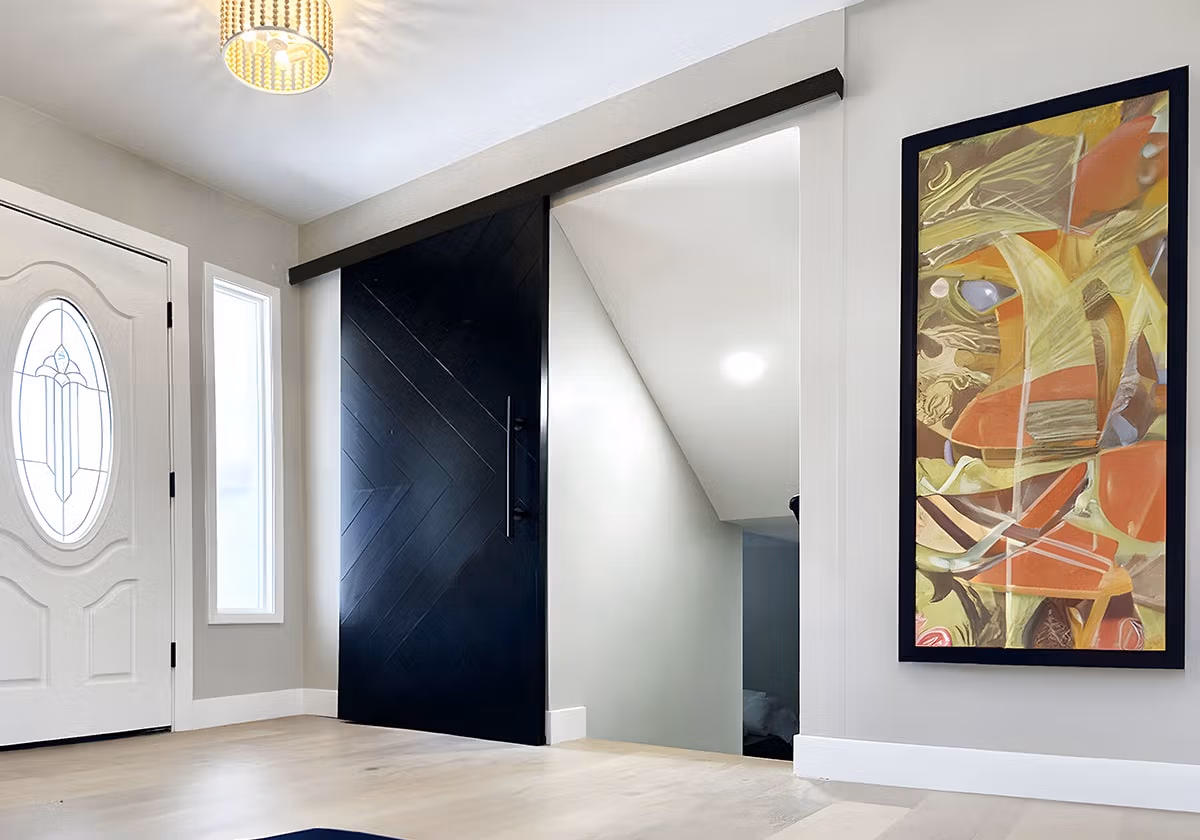

The CS SideMountTrack is the best choice for achieving a modern aesthetic.
This system distinguishes itself with a flat, minimalist design, providing a contemporary take on traditional barn door systems.

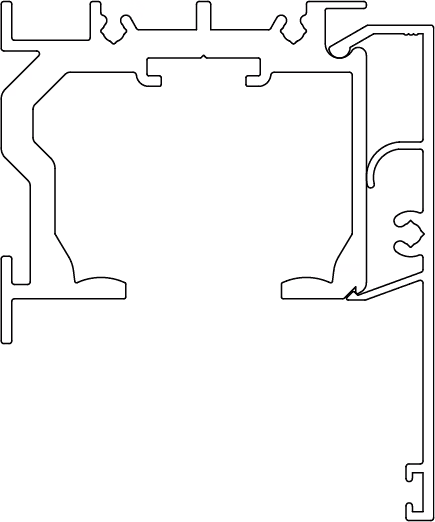

The track is supplied with pre-drilled fixing holes for quick and easy installation. It also comes with a pre-finished clip-on aluminum fascia and end caps that neatly conceal the top of the door, track, and running gear.
The CS SideMountTrack can also be upgraded with the SofStop® soft-close feature, making it ideal for quiet environments like bedrooms, offices, and patient rooms.
Features
Technical Details
Track Finish: Milled Aluminum
Fascia Finish: Clear or Bronze Anodized Aluminum
Suitable Door Thickness: 1-3/8” to 1-3/4” (35-45mm)
Maximum Door Weight: 500 lb (240kg)
Maximum Track Length: 24’ (7.3m)
Brush Seals Available: Yes
Carriage Pack: M6 (200lb), M8 (500lb), SofStop, SofStop HD
How to Specify
Step 1. Determine Door Width: Generally, your track length should be twice your door width.
Step 2. Select Track Length: Multiply your door width by two. Choose from pre-cut lengths: 6′, 8′, 12′, 24′. Tracks can be cut down for custom widths.
Step 3. Select Carriage Pack or SofStop: Choose one per door. Each pack includes carriages, mounting plates, T-Guide, screws, and an adjusting wrench. For standard operation, select M6 (200lb/90kg) or M8 (500lb/240kg). For soft close, select an option from the drop down list.
A Track Stop is needed when no physical stops are present, i.e., your door does not come to rest at a closing jamb or wall stud. If this is the case for your installation, be sure to choose a carriage pack that includes a stop.
