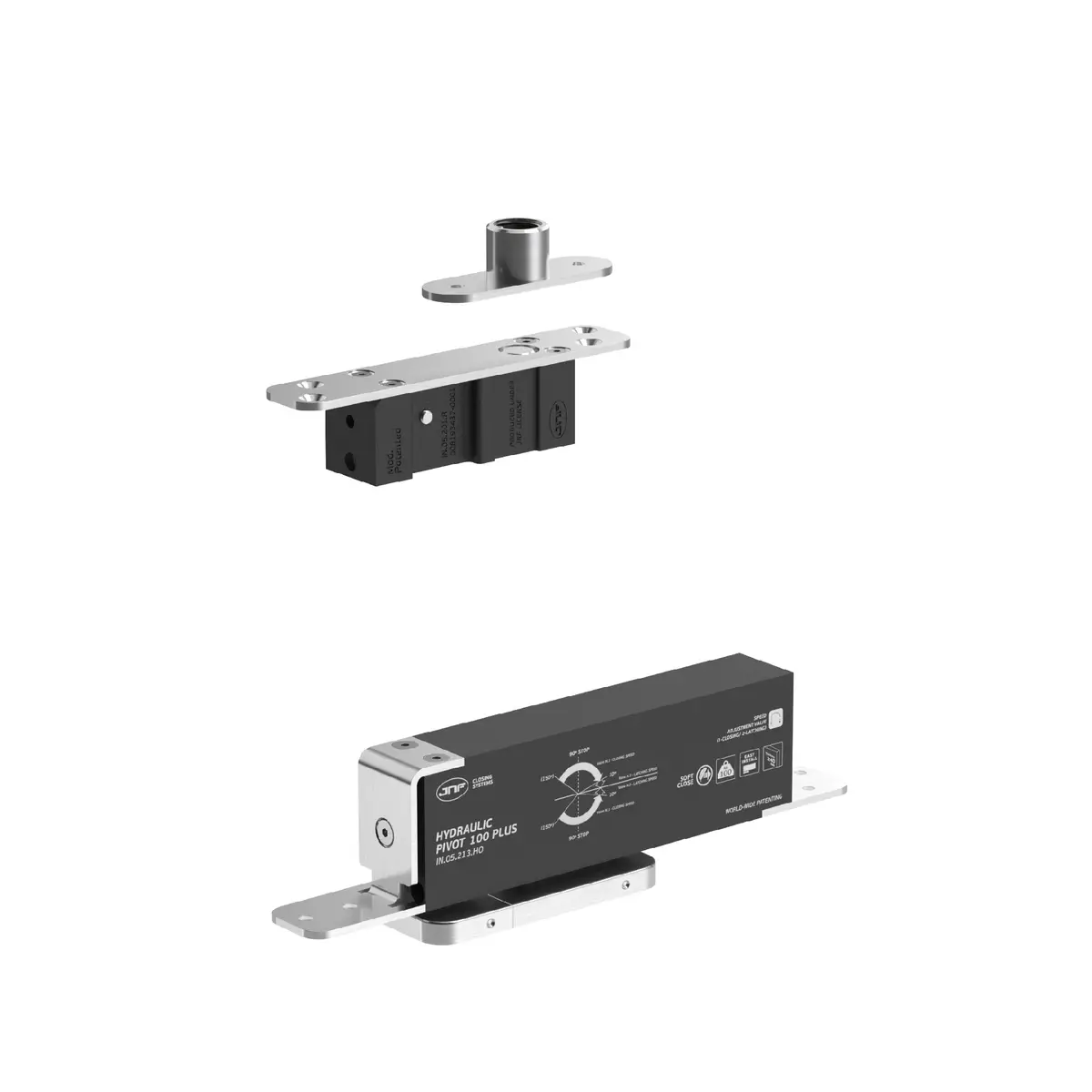

Dawson Moor Hydraulic Pivot Hinge with 90º stop (Up to 220lbs) 100 Plus

Dawson Moor Hydraulic Pivot Hinge with 90º stop (Up to 220lbs) 100 Plus
Dawson Moor Hydraulic Pivot Hinge with 90º stop (Up to 220lbs) 100 Plus - Image 2
Dawson Moor Hydraulic Pivot Hinge with 90º stop (Up to 220lbs) 100 Plus - Image 3
Product warranty icon logo

High Quality
Products

Shipping delivery van logo

Fast & Free
Shipping*

Product page icon logo

We’ll Beat any Price!

* to continental States direct from California / Florida (excludes Acoustic, Telescopic and larger than 90″ kits)

3,132 items successfully delivered this year
No videos found for this product

Downloads

IN.05.213.HO Installation Instructions

IN.05.213.HO Technical Data Sheet

From: $364.80

Specifications & Features:

  • Adjustable Damper and Latching Speed
  • Hold positions at ±90° and 0°
  • Maximum door weight : 100 kg (220 lbs)
  • Maxmum door width : 1500 mm (59.06”)
  • Minimum Wood Thickness: 38 mm(1.50”)
  • Minimum pivot point offset : 120 mm (4.53”)
  • Gap at floor : 11.5 mm (0.45”)
  • Gap at header : 6 mm (0.24”)
  • Material : Stainless Steel EN 1.4301 (AISI 304)



Finish Satin
Material EN 1.4301 (AISI 304)
Weight 220lbs (Max.)
SKU IN.05.213.HO



  • High Quality Products
  • Fast & Free Shipping*
  • We'll Beat Any Price!

* to continental States direct from California / Florida (excludes Acoustic, Telescopic and larger than 90″ kits)

3,132 items successfully delivered this year
