ECLISSE Brackets for Frameless Glass Doors

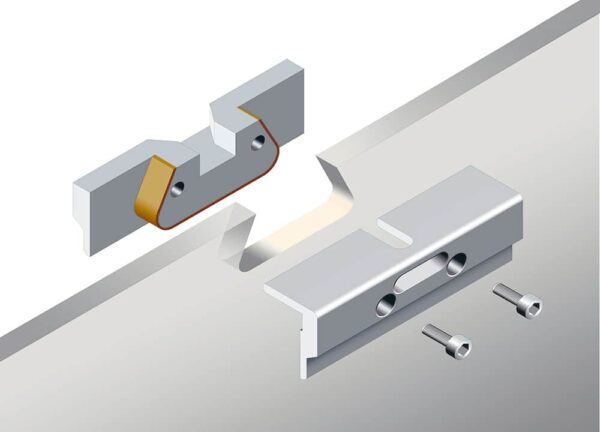

Bracket for frameless glass pocket doors. Standard with ECLISSE glass doors.

These brackets only work with ECLISSE track & hardware, 3/8” frameless glass doors and require a glass cut out.

-Glass thickness must be 3/8”
-Requires glass cut out
-Dimensions: W 3-15/16” x H 1-3/8” x TH 1-1/32”
-For installation two “dovetail” incisions are required
-Max door panel weight 220 lbs
