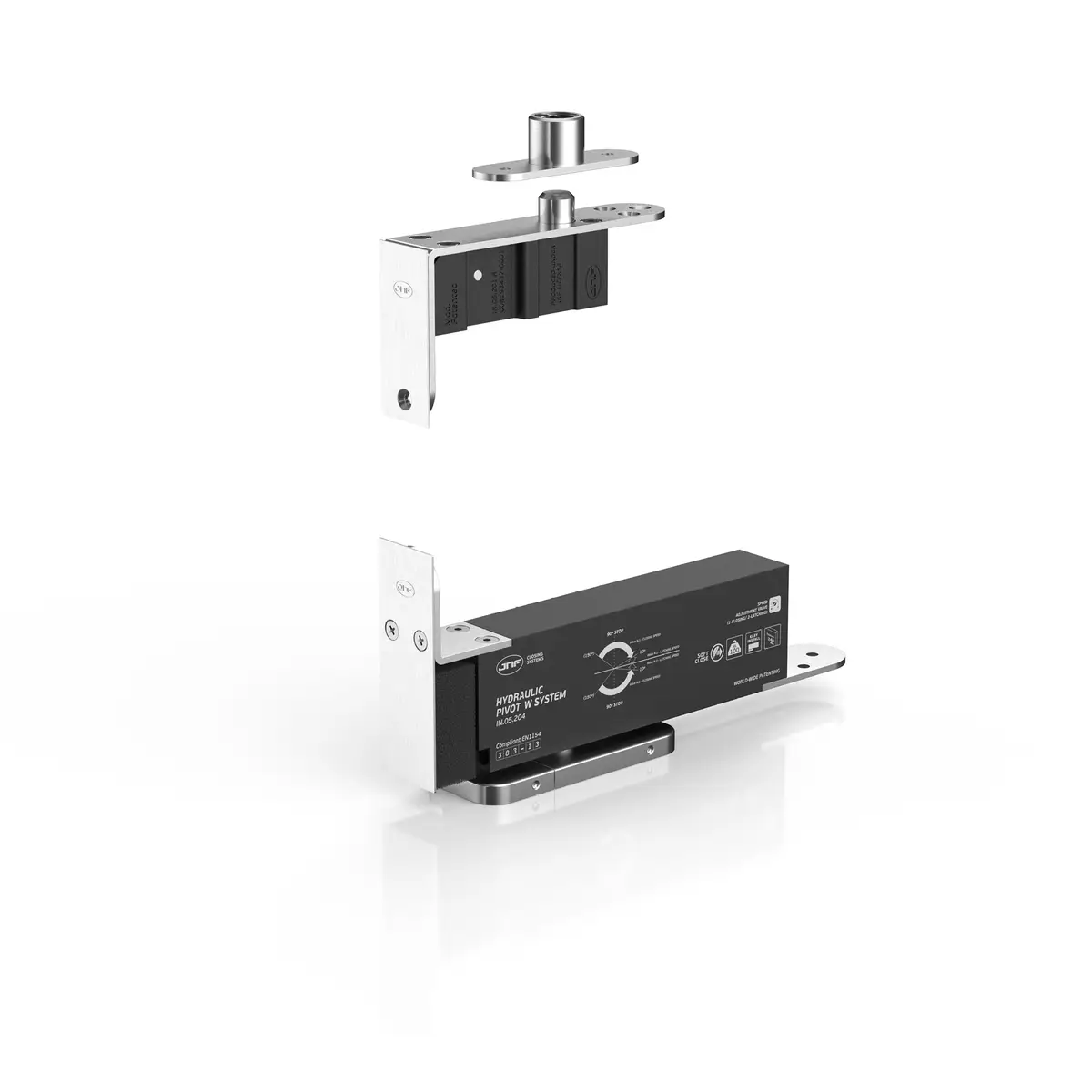

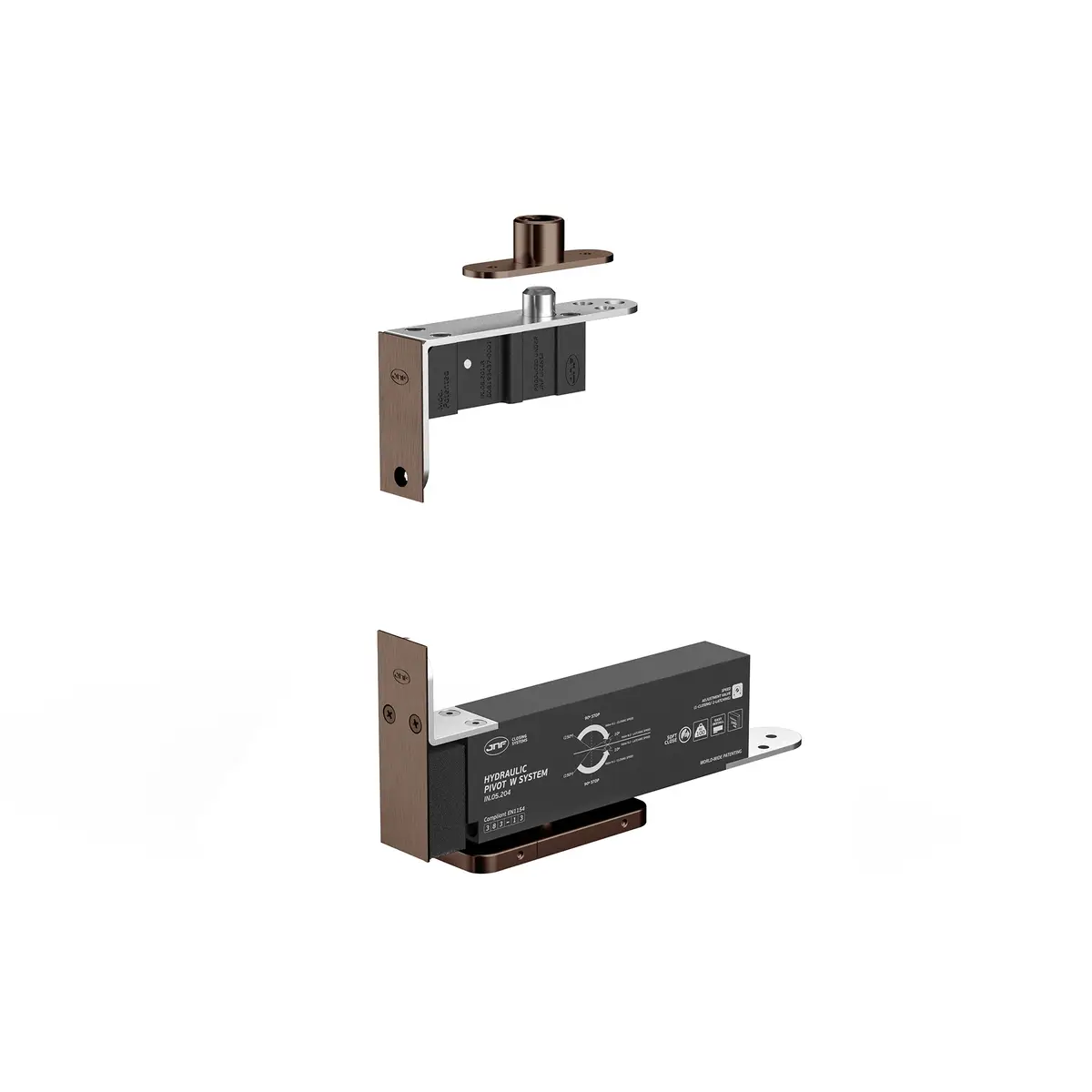

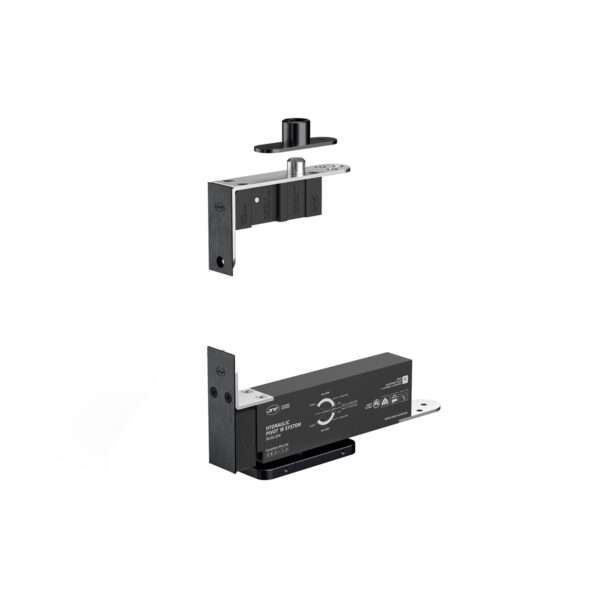

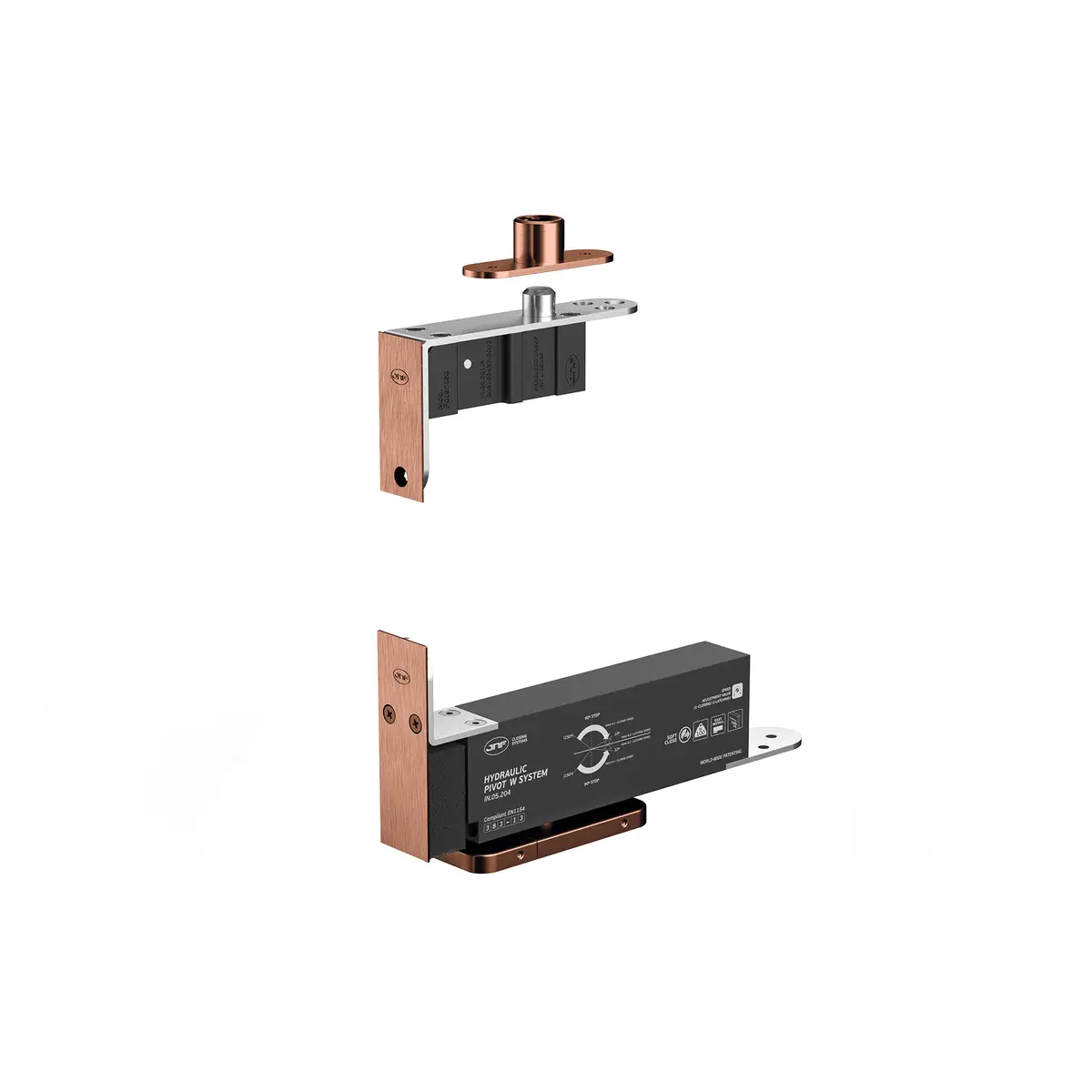

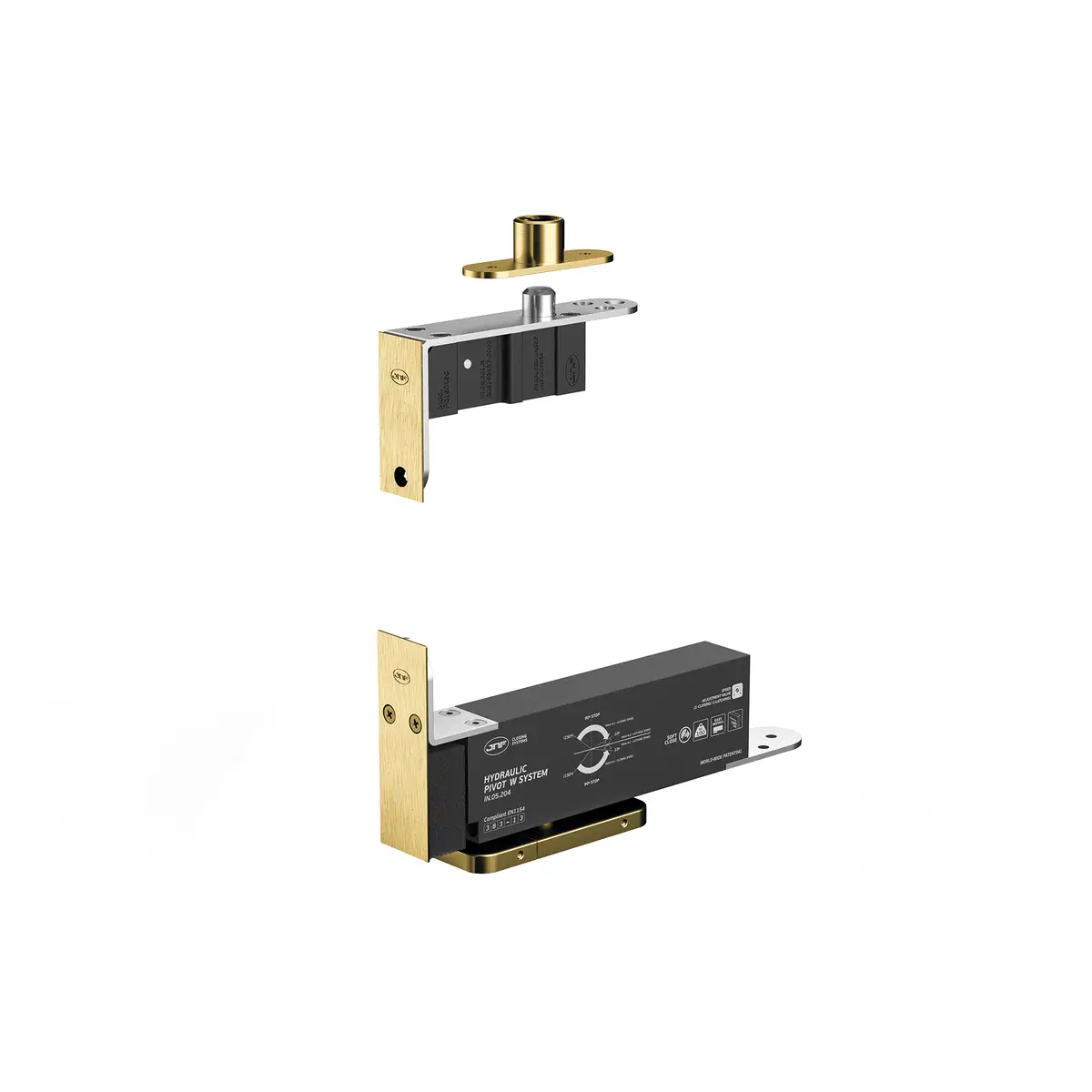

Dawson Moor Hydraulic Pivot Hinge Set Up to 220lbs (100 EDGE)

Dawson Moor Hydraulic Pivot Hinge Set Up to 220lbs (100 EDGE)
Dawson Moor Hydraulic Pivot Hinge Set Up to 220lbs (100 EDGE) - Image 2
Dawson Moor Hydraulic Pivot Hinge Set Up to 220lbs (100 EDGE) - Image 3
Dawson Moor Hydraulic Pivot Hinge Set Up to 220lbs (100 EDGE) - Image 4
Product warranty icon logo

High Quality
Products

Shipping delivery van logo

Fast & Free
Shipping*

Product page icon logo

We’ll Beat any Price!

No videos found for this product
5,892

orders successfully delivered this year.

* to continental States direct from California (excludes Acoustic and 96″+ kits)

Downloads

IN.05.204 Installation Instruction

IN.05.204 Technical Data Sheet

From: $352.80

Specifications & Features:

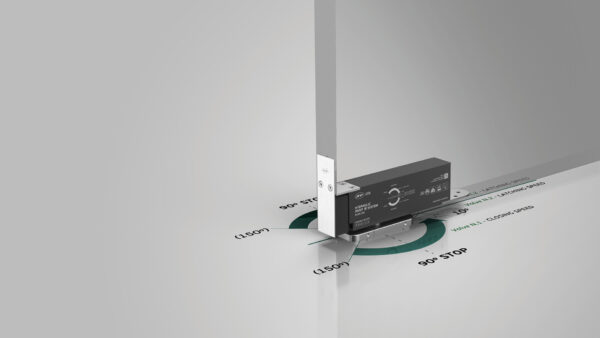

  • Adjustable Damper and Latching Speed
  • Hold positions at ±90° and 0°
  • Maximum door weight : 100 kg (220 lbs)
  • Maximum door width : 1000 mm (39.37”)
  • Minimum Doors Thickness : 40 mm (1-9/16”)
  • Fixed pivot point offset : 80 mm (3.15”)
  • Gap at floor : 11.5 mm (0.45”)
  • Gap at header : 6 mm (0.24”)
  • International Patent
Finish Satin
Material EN 1.4301 (AISI 304)
Weight 220 lbs (100 kg)
SKU IN.05.204

  • High Quality Products
  • Fast & Free Shipping*
  • We'll Beat Any Price!

Related products

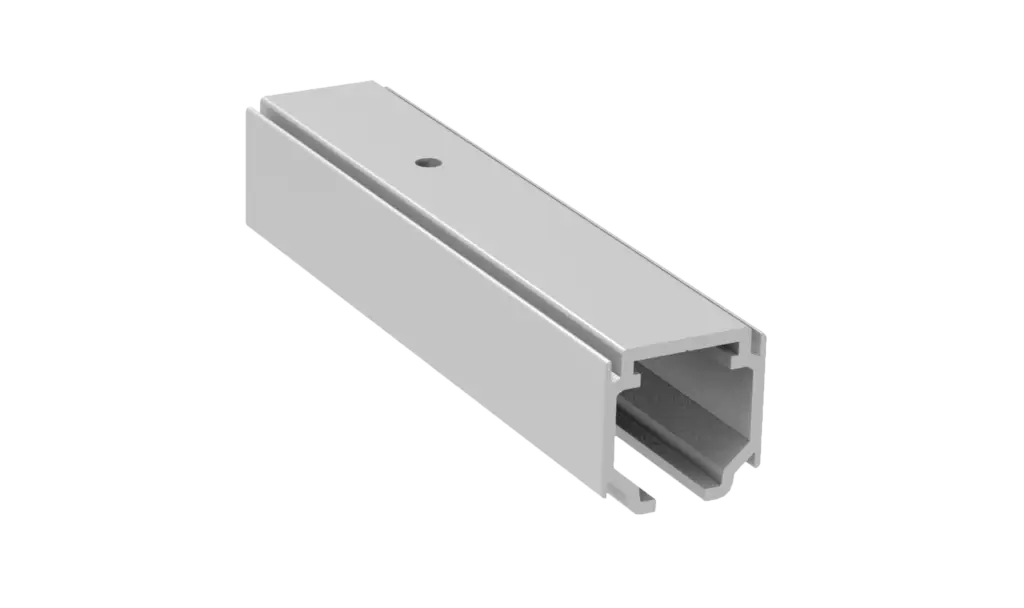

Dawson Moor EXCELLENCE top track. Ceiling mounting. Satin anodized aluminium. 78″
