ARLU Tyo Invisible/Concealed Hinge (Up To 132lbs)

High Quality
Products

Fast & Free
Shipping*

We’ll Beat any Price!

No videos found for this product

4,142

orders successfully delivered this year.

* to continental States direct from California (excludes Acoustic and 96″+ kits)

Downloads

$39.99 – $49.99

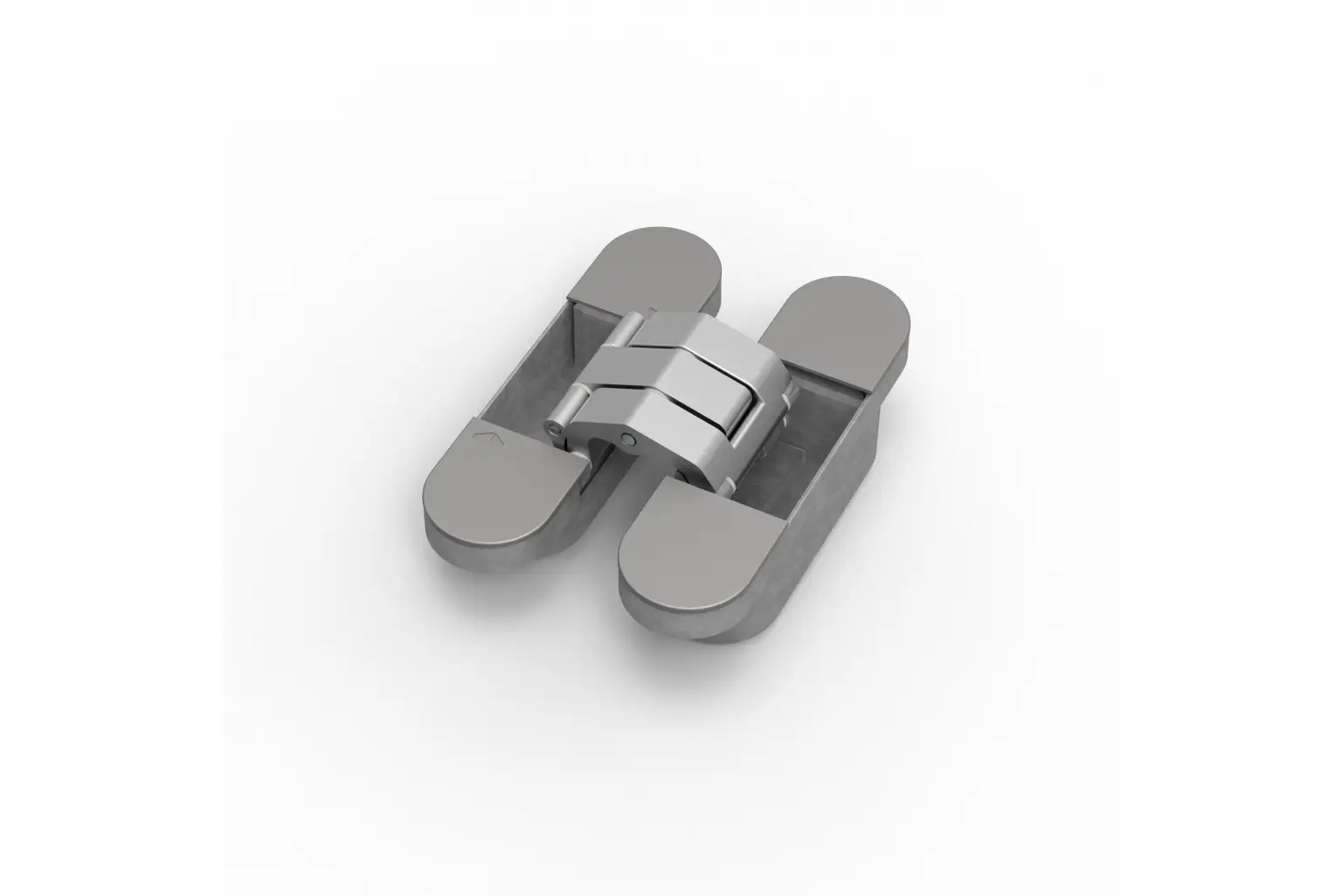

Invisible tyo is a 3D-adjustable concealed hinge with concealed screws that has been specifically developed for door frames with a minimal fitting depth of 21 mm. Invisible tyo is reversible and can be used for both left and right-hand doors.

What makes invisible tyo so unique?

Technical

Depth to fit: suitable for a minimal fitting depth in the door frame of just 21 mm

Ease of use

Universal: invisible Tyo is suitable for both left and right-hand doors
3D-adjustable: These invisible hinges can be set in height, width and depth
Opening angle: Invisible Tyo has an opening angle of 180°

Aesthetics

Design: no visible adjustment and fastening screws due to the cover plates

Weight Table

Number of Hinges		2 Hinges	3 Hinges
Max door weight according to door width	28.74 inches	165lbs	209lbs
	32.68 inches	154lbs	198lbs
	36.61 inches	143lbs	187lbs
	40.55 inches	132lbs	176lbs
